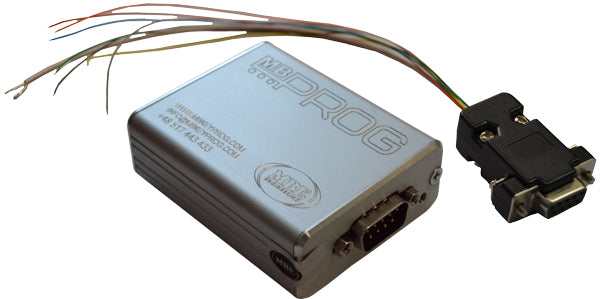

MBPROG - HC05/HC08/9(S)12 MOTOROLA IN-CIRCUIT PROGRAMMER - BASIC

MBPROG programmer is technologically advanced universal processor programmer. Advanced technology used in production of MBPROG allows us to continuously develop new supported systems. The use of advanced technologies allows to read processor in no more than 3 - 4 seconds.

Download software

Set also comes with 2 adapters: MC68HC05x32, MC68HC05E6.

Possible to order set in case for 20 EUR cost.

Basic version of MBPROG works with processors: HC12, HCS12, HCS12X, HCS12XEP, HC08, HC908, HC05.

It allows to work ignition locks (EIS/EZS) used in Mercedes-Benz vehicles (also secured 4J47Y and 1J35D in W203, W220, 2L52H and 1L52H in Sprinter). Software supports masks 2J74Y, 3K85K,0J66D,1H56A,1L87J

MBprog reads/writes both EEPROM and FLASH.

MBprog works with secured and unsecured processors and it does not need outside power supply.

To work with MBPROG you can use supplied software and MicroClac.

Manuals with pictures are installed with software (all needed diagrams how to connect and read processors in EZS, CAS and other modules).

Detailed list of covered processors with masks:

MC9S12D64/DJ64 Mask: 0L86D, 2L86D, 2L86D, 3L86D,4L86D, 0M89C

MC9S12B128/DB128/DJ128/DG128/DT128 Mask: 1L40K, 3L40K, 4L40K, 0L94R,1L59W,5L40K, 0L58S, 0L85D, 1L85D, 0L80R,1L80R, 2L80R, 3L80R

MC9S12DG256/DP256/DT256/H256 Masks:1K78X, 2K78X, 0K79X, 1K79X,2K79X, 0L01Y, 3L91N

MC9S12DP512 Masks:0L00M, 1L00M, 2L00M, 3L00M, 4L00M

MC9S12XDP384 Masks:0L15Y, 1L15Y, 0M84E, 1M84E,0M42E, 1M42E, 2M42E

MC9S12XDP512 Masks:0L15Y, 1L15Y, 0M84E, 1M84E,0M42E, 1M42E, 2M42E

MC68HC(9)12DG128A/DT128A/DC128A Masks:3K91D

MC68HC(9)12DG128/DT128 Masks:5H55W, 0K50E

MC68HC(9)12D60 Masks:0K13J, 0K75F, 1F68K, 1L28M, 4F73K

Only unsecured:

MC9S12XEQ256

MC9S12XEQ512 0M25J,0M25J,1M25J,2M25J,3M25J

MC9S12XEP768 mask:4M48H,5M48H

MC9S12XEP100 mask:0M22E,1M22E,2M22E,0M48H,1M48H,2M48H,3M48H,4M48H,5M48H

Unsecured:

HC08AZ32 EE Read/Write EE

HC08AZ60 EE Read/Write EE

MC68HC05L28

HC05Bxx EE Read/Write EEprom

HC05E6 EE Read/Write EEprom

HC05L28 EE Read/Write EEprom

HC05X32 EE Read/Write EEprom

HC05X32 EE (0D69J) Read/Write EEprom

HC05X32 EE (1D69J) Read/Write EEprom

HC05X32 EE (1H52A) Read/Write EEprom

HC705X32 EE (0G47V) Read/Write EEprom

Secured:

HC08AZ32 EE Read/Write EE

HC08AZ60 EE Read/Write EE

HC08AZ60 EE Read/Write EE

MC68HC05B6, MC68HC05B16 MC68HC05B32 Read/Write EE

MC68HC05X16,MC68HC05X32 Read/Write EEprom  used in : EZS W202, W210, Sprinter , Vito

MC68HC05E6 Read/Write EEprom  used in : ELV W202, W210, W211,W203,W906,W639

Additional licenses:

• MBPROG - MC9S12XEP 5M48H Sec
• MBPROG - Fujitsu MB UPDATE
• MBPROG - ST10 UPDATE
• MBPROG - Renesas M32C UPDATE
• MBPROG - Renesas R32C UPDATE
• MBPROG - HC11 UPDATE
• MBPROG - HC05 UPDATE
• MBPROG - NEC V850 UPDATE
• MBPROG - Freescale MPC5604; SGS Thompson SPC560P UPDATE
• MBPROG - Micronas CDC 3272; 3297; 3217 UPDATE
• MBPROG - Infineon XC 2361 UPDATE
• MBPROG - MOTOROLA MAC 7242; 7241; 7116 UPDATE
• MBPROG - SPC56A
• MBPROG - RH850 Family
• MBPROG - Renesas RL78
• MBPROG - Tricore TC2xx
• MBPROG - MCU Texas Instrument TMS570
• MBPROG - Renesas R8C
• MBPROG - TMS370 PLC28, PLCC44, PLCC68
• MBPROG - CEM Volvo (MC68376+28F400)
• MBPROG - PCF7941 PSA KEY (key renew)
• MBPROG - Spansion S6J30xx
• MBPROG - MPC564x, MPC567x
• MBPROG - MPC55xx
• MBPROG - Fujitsu MB91F06x
• MBPROG - CR16
• MBPROG - NEC V850 70F35xx
• MBPROG - Renesas R5F172x Read/Write
• MBPROG - SPC56A
