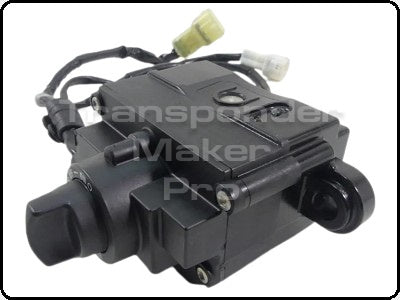

Memory device is Renesas MCU R5F10BGG 64-pin package.
You can read Renesas R5F10BGG with TMPro.
View connection diagram for Ducati.
View connection diagram for KTM.
Expected file size is 4096 bytes bytes.
Use original handsfree key or Texas Crypto 128-bit AES ID8A transponder.
Written transponder is ready programmed to start motorbike.
Vehicles equipped with this unit:
Ducati: Diavel(2019-), XDiavel(2019-), Multistrada(2019-)
KTM: 1290(2019-)
